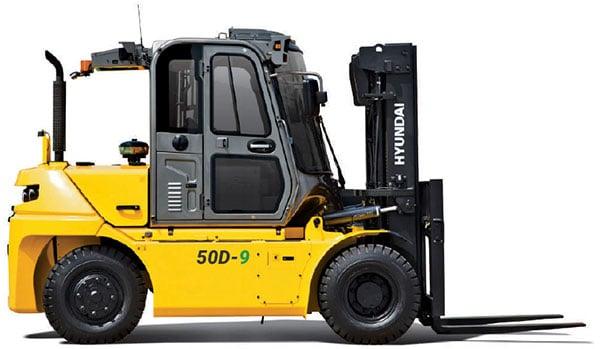

50D-9

Identification:

Load Capacity (lbs)

11,000

Load Center (in)

24

Dimensions:

Service Weight (lbs)

19,599

Overhead Guard Height (in)

102

Length to Face of Forks (in)

138

Overall Width (in)

82

Ground Clearance, Center of Wheelbase (in)

7.8

Turning Radius (in)

130

Wheels:

Front Tires Size

82.5 x 15 - 14PR

Rear Tires Size

82.5 x 15 - 14PR

Performance:

Travel Speed, Unloaded (mph)

21

Engine Manufacturer

CUMMINS / QSF3.8

Engine Horse Power

101

Number of Cylinders/Cubic Capacity

4 / 3,800

Service Brake

Foot (Hydraulic)

  • Fork (in):
    47 (standard), 53, 59, 71, 79, 91, 95
  • Overshoe (in):
    71, 79, 87, 91
  • Integral side shift, Integral fork positioner, Sideshift
  • Tire:
    Solid (Superelastic) / Non-marking
  • M.C.V:
    2-spool, 3-spool, 5-spool
  • Seat:
    Armrest, Heat, Backrest Ext., Buckle SW
  • Weight indicator
  • Rearview camera
  • Cabin (heater & air conditioner)
  • Battery disconnect switch (master switch)
  • Beacon lamp (LED) (amber, red, blue)
  • Rear work lamp
  • Top wiper
