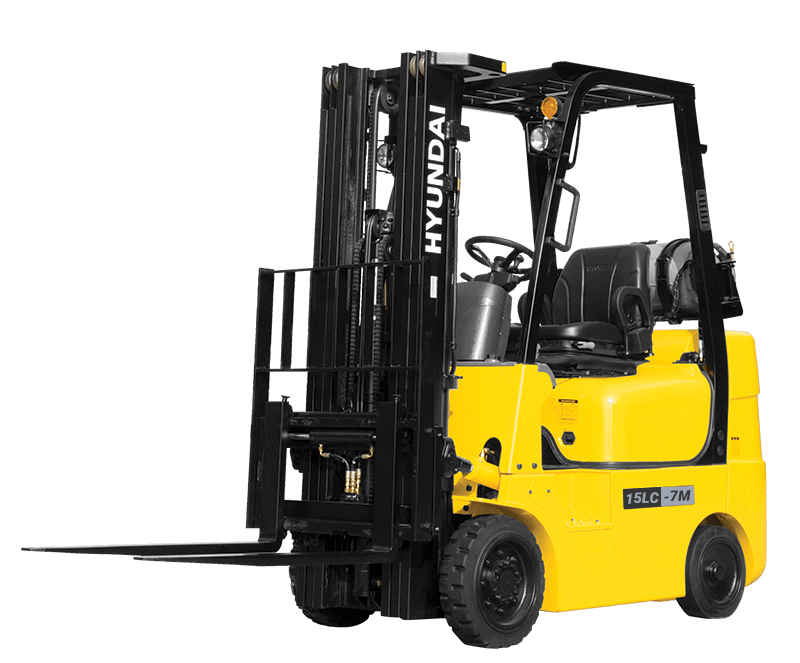

15LC-7M

Hyundai

Load Capacity (lbs)

3,000

Load Center (in)

Service Weight (lbs)

6,234.7

Overhead Guard Height (in)

84.4

Length to Face of Forks (in)

82.4

Overall Width (in)

38.6

Ground Clearance, Center of Wheelbase (in)

3.8

Turning Radius (in)

74.5

Front Tires Size

18 x 6 x 12.125

Rear Tires Size

14 x 5 x 10

Travel Speed, Unloaded (mph)

10.5

Engine Manufacturer

MMC 2.0L

Engine Horse Power

Number of Cylinders/Cubic Capacity

4/1,997

Service Brake

Mechanic/Hydraulic

SIDE SHIFT
INTEGRAL SIDE SHIFT
FORK:
29.5, 33.5, 41.3, 47.2, 53.1, 59.1 in (15/18LC-7M)
37.4, 39.4, 41.3, 45.3, 44.9, 47.2
53.1, 59.1, 63.0 in (20LC-7M)
OVER SHOE (Extension Fork):
51.2, 59.1, 66.9 in
TILTING:
6/6o, 6/5o, 3/3o
TIRE:
Cushion, Non marking
SEAT:
Pocket, Arm Rest, Hip Rest
M.C.V:
4-Spool
ATTACH PIPING:
3 Spool-piping, 4 Spool-piping
MASTER SWITCH
BEACON LAMP
HAZARD SWITCH
WORK LAMP
