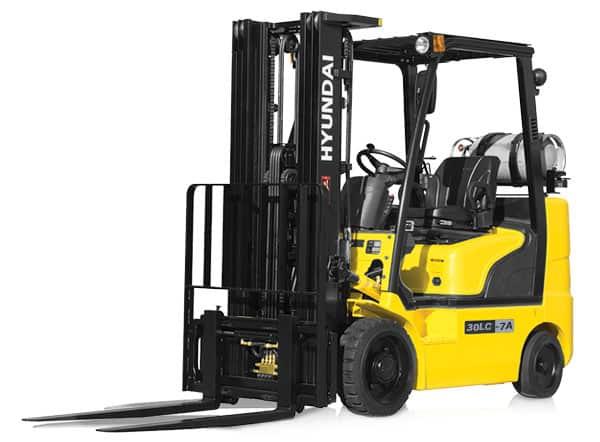

30LC-7A

Identification:

Load Capacity (lbs)

6,000

Load Center (in)

24

Dimensions:

Service Weight (lbs)

9,352

Overhead Guard Height (in)

82

Length to Face of Forks (in)

93

Overall Width (in)

44

Ground Clearance, Center of Wheelbase (in)

4.5

Turning Radius (in)

83

Wheels:

Front Tires Size

21 x 8 x 15

Rear Tires Size

16 x 6 x 10.5

Performance:

Travel Speed, Unloaded (mph)

9.9

Engine Manufacturer

HMC L4KB

Engine Horse Power

59

Number of Cylinders/Cubic Capacity

4 / 2,359

Service Brake

Mechanic / Hydraulic

  • SIDE SHIFT
  • INTEGRAL SIDE SHIFT
  • FORK:
    35 in, 39 in, 47 in, 53 in, 59 in, 65 in, 71 in
  • OVER SHOE: 51 in, 59 in, 67 in, 71 in
  • TILTING : 6/5° , 3/3° , 10/6° (Bottler Tilt's)
  • TIRE:
    Cushion, No-marking
  • SEAT:
    Pocket, Arm Rest, Hip Rest, FG 25, 26 Grammer Seat
  • LPG CLAMP:
    Swing Out, Swing Down
  • M.C.V:
    4-Spool
  • ATTACH PIPING:
    3 Spool-piping, 4 Spool-piping
  • MASTER SWITCH
  • BEACON LAMP
  • HAZARD SWITCH
  • WORK LAMP
  • SPEED CONTROL SENSOR
