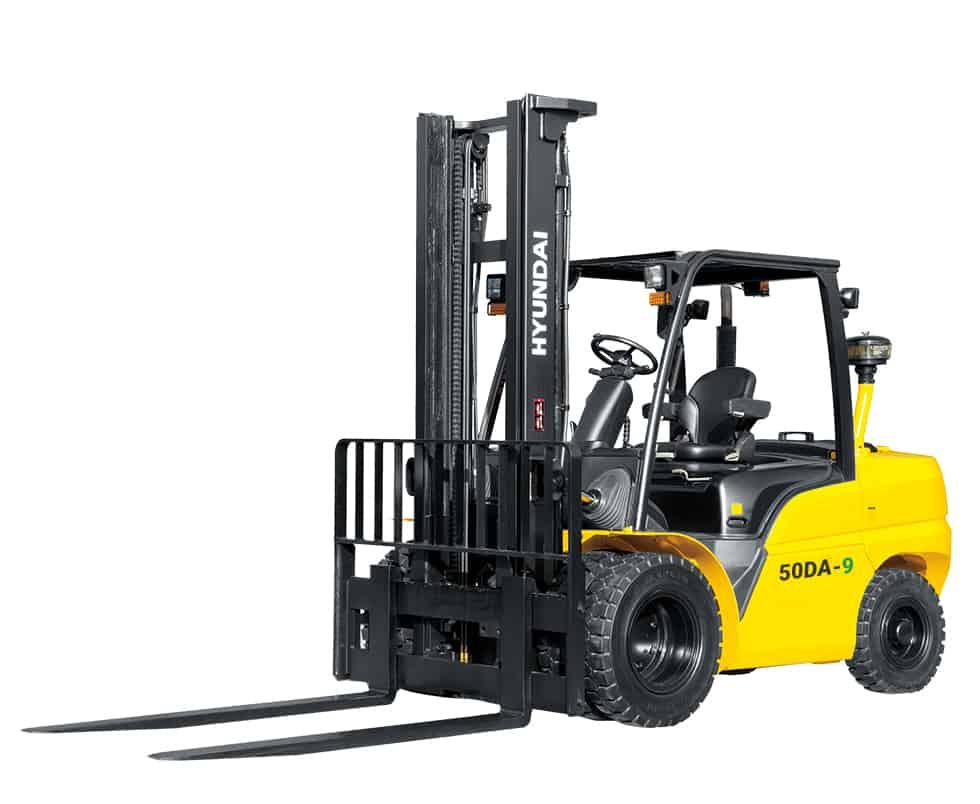

50DA-9

Hyundai

Identification:

Load Capacity (lbs)

11,000

Load Center (in)

24

Dimensions:

Service Weight (lbs)

16,131

Overhead Guard Height (in)

87

Length to Face of Forks (in)

130

Overall Width (in)

69

Ground Clearance, Center of Wheelbase (in)

7.3

Turning Radius (in)

118

Wheels:

Front Tires Size

7.50 x 16-12PR

Rear Tires Size

7.00 x 12-14PR

Performance:

Travel Speed, Unloaded (mph)

15.9

Engine Manufacturer

CUMMINS QSF3.8

Engine Horse Power

101

Number of Cylinders/Cubic Capacity

4 / 3,726

Service Brake

FOOT

Drive Control

PowerShift

Fork (in) 50DA-9: 47, 53, 59, 71, 79, 94
Overshoe (in) 30D-9: 63, 71, 79 40/45D-9: 71, 79, 87 50DA-9: 71, 79, 87, 91
Integral sideshift, fork positioner, sideshift, INT, SS with FP for single tire
Tire: Solid (superelastic) / non-marking / front single / double tire
M.C.V: 3-spool, 4-spool, 5-spool
Seat: Armrest, Heat, Backrest Ext, Buckle SW
Load weight indicator
Auto fork leveling system
Rear-view camera
Cabin (heater and air conditioner)
Hydraulic pump temperature / pressure monitor
Battery disconnect switch (master switch)
Beacon lamp (LED) (amber, red, blue)
Rear work lamp or LED rear work lamp
F-N-R and horn knob switch
Rear horn
LED work lamp
Overhead guard (height: 92 inches / 2340 mm)
OPPS (Travel, Travel Mast)

View the Manufacturer’s Online Brochure »
